//VERSION=3//This custom script visualises the water occurrence layer similar to the symbology described in the data user guide with a slightly different color stretch.//Set up input and output settingsfunctionsetup(){return{input:["occurrence"],output:{bands:3,sampleType:"AUTO"}}}//Create color rampconstramps=[[1,0xffcccc],//1% occurrence (Light red)[100,0x0000ff]//100% occurrence (Pure blue)];//Create visualizerconstvisualizer=newColorRampVisualizer(ramps);//EvaluatePixel functionfunctionevaluatePixel(sample){if(sample.occurrence==0){//Not waterreturn[1,1,1]//Return White}elseif(sample.occurrence>100){//No datareturn[0.8,0.8,0.8]//Return Light gray}elseif(sample.occurrence>0&&sample.occurrence<=100){//1 - 100% occurrencereturn[visualizer.process(sample.occurrence)[0],visualizer.process(sample.occurrence)[1],visualizer.process(sample.occurrence)[2]];//Return color ramp values}}
General description of the script
This script visualizes the Occurrence layer from the Global Surface Water dataset according to the official symbology (Table 1). The water Occurrence layer shows the (intra- and inter-annual) variations of surface water presence in the time range between March 1984 and December of the selected review year.
Table 1: Occurrence Symbology
Value
Symbol
Colour
Label
0
0xffffff
Not water
1
0xffcccc
1% occurrence
100
0x0000ff
100% occurrence
255
0xcccccc
No data
Description of representative images

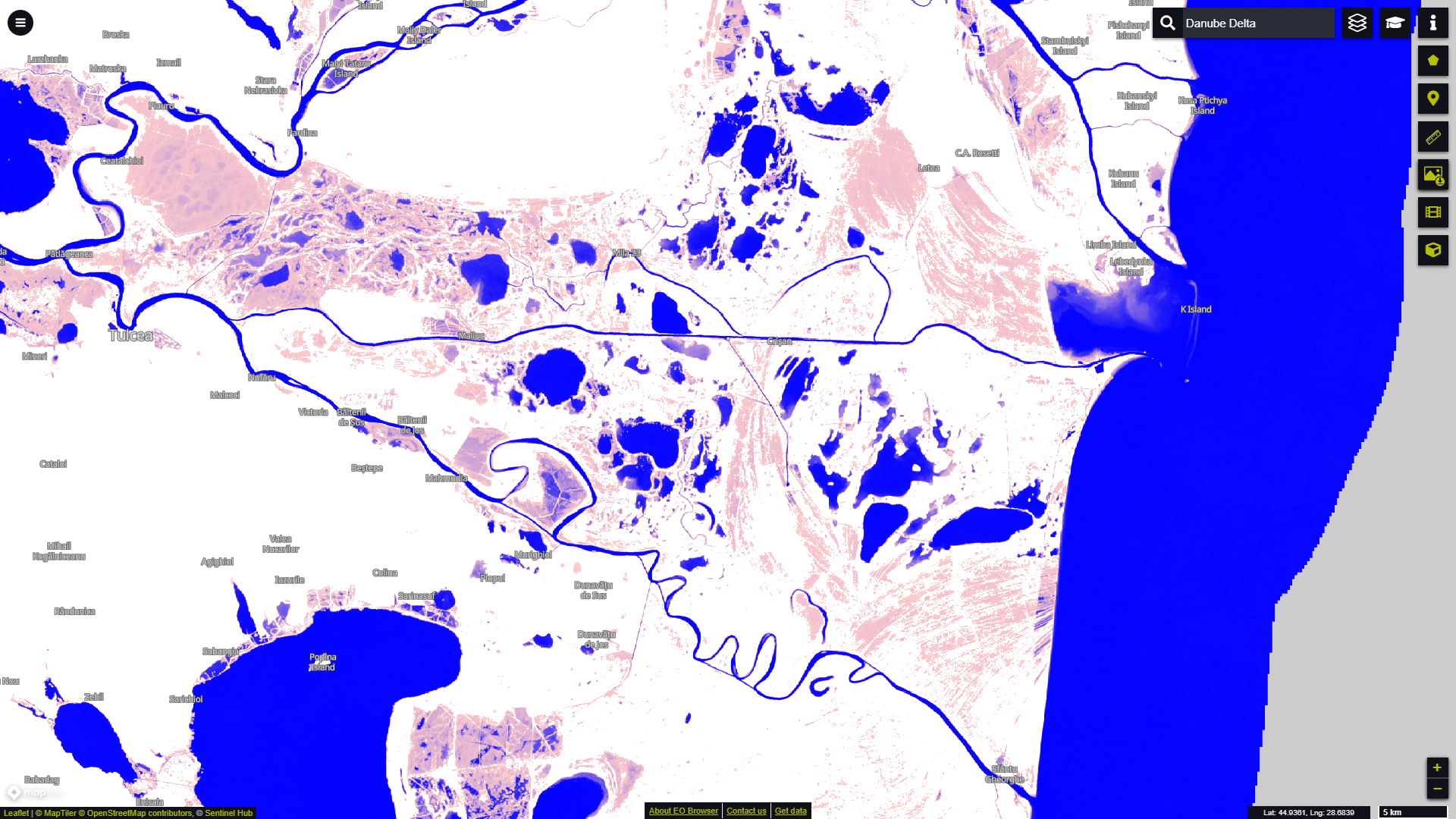

Occurrence layer visualisation in EO Browser for the Danube Delta in Romania.
